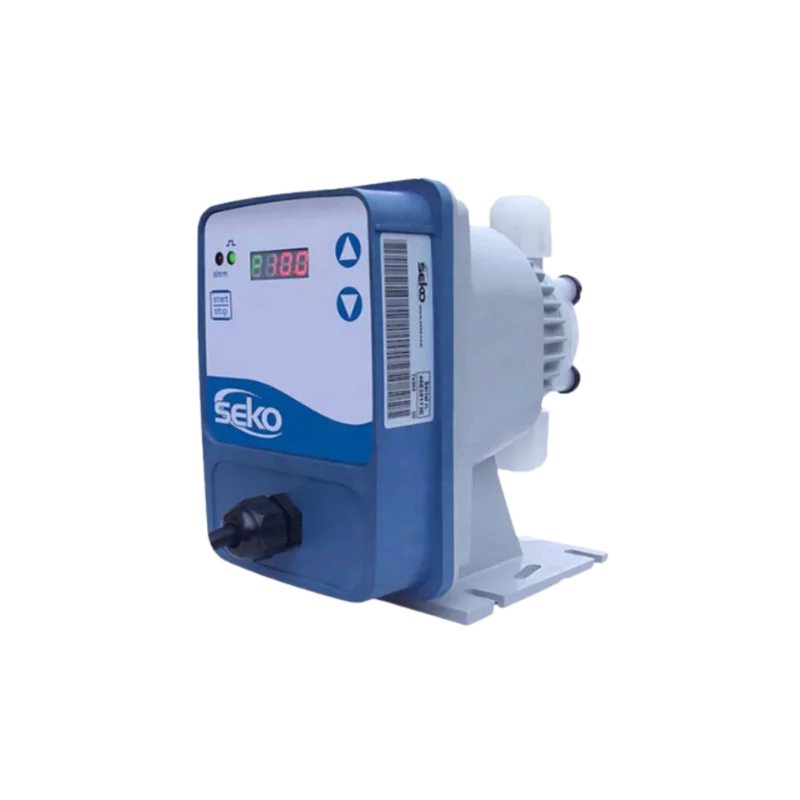

Dosing Pump

Model: DMS200

Brand: Seko

Features:

The dosing pump provides precise and accurate dosing of chemicals, ensuring optimal chemical treatment in various applications.

It offers adjustable flow rates to accommodate different dosing requirements, allowing for flexibility in chemical dosing processes.

The dosing pump is compatible with a wide range of chemicals used in water treatment, wastewater treatment, industrial processes, and other applications.

SEKO DMS200-SPC
.pdf
Download PDF • 652KB

A dosing pump draws a measured amount of liquid into its chamber and injects the chemical into a tank or pipe that contains the fluid that is being dosed.




Specifications:

Model:

DMS200AHP0800

Material of head:

PVDF

Section, Discharge:

PPE

Diaphragm material:

EPDM

Sp. gravity:

1 kg/dm3

Temperature:

Up to 40 °C

Discharge capacity:

0-9 LPH

Total dynamic head:

10 bar

Recommended motor:

14W, 220V, 50hz, 3 Ph

Standardization:

ISO 9001, 2008

Valve ball material:

Ceramic

Seal & gasket:

EPDM / FPM

Brand:

Seko

Origin:

Italy
