Procon Pumps
Model: PMB
Brand: Procon
Features:
Consistent flow rate across variable pressures |
Self-priming (water) and maintenance-free with low vibration and pulsation characteristics |
Brass Housing Material |
Internal Relief Valve Standard-Non External adjust configuration |
Procon Pumps are widely utilized in water treatment applications, showcasing their versatility and reliability in handling various fluids and operating conditions. In the water treatment sector, Procon pumps can be found in critical systems like Reverse Osmosis (RO), Water Filtration, and Desalinization processes. These pumps are essential for ensuring the effective circulation and treatment of water in both large-scale industrial plants and smaller commercial or residential systems.
Specifications:
PMB-1533
Technical Information:
Material | Brass |
Port Hole | NPT 3/8" |
Mounting Type | Clamp-On |
Drive Configuration | Double Flat |
Flowrate (GPH) | 100 GPH |
Flowrate (LPH) | 300 LPH |
Elastomer | EPDM/Nitrile |
Seal Type | Non-Balanced Ceramic/Carbon |
Rotation | Clockwise |
Internal Component Material | Carbon |
Valve Type | Solid- Ultem |
Valve Configuration | Standard-Non External adjust |
Product Weight | 2.1 lb (0.95 Kg) |
Operating Range:
Maximum Mechanical Power Requirement | 0.42 hp (313 W) |
Maximum Operating Pressure | 150 psi |
Relief Valve Set Pressure Range | 151 to 250 psi (10 to 17.5 BAR) |
Max Static Pressure PSI | 100 psi |
Min Operation Fluid Temperature | -4°F |
Max Operation Fluid Temperature | 160°F |
Max Fluid Viscocity | 100 cP |
Max Sound Level | 60 dB(a) |
Max Discharge Pressure | 250 psi |
Min Speed | 1000 RPM |
Max Speed | 2400 RPM |
Dry Suction Lift | 3.3 ft |
Wet Suction Lift | 6.6 ft |
Fluid Acidity | 6 pH |
Maximum Total Dissolved Solids (TDS) | 5000 ppm |

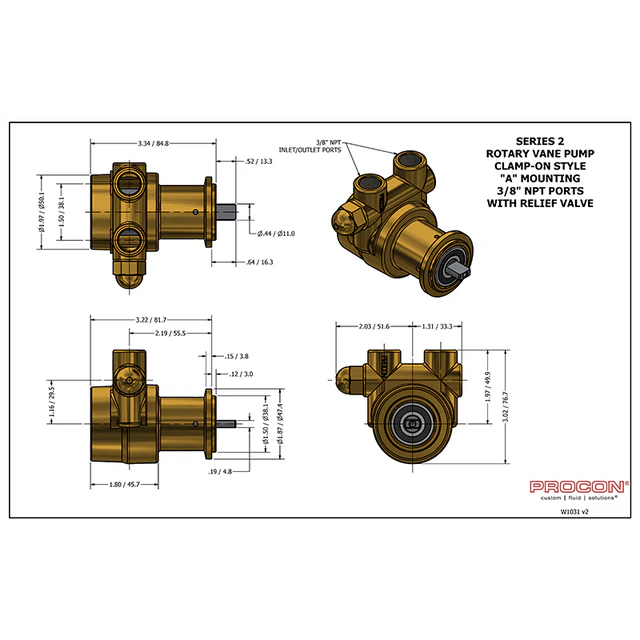

Product Drawing:

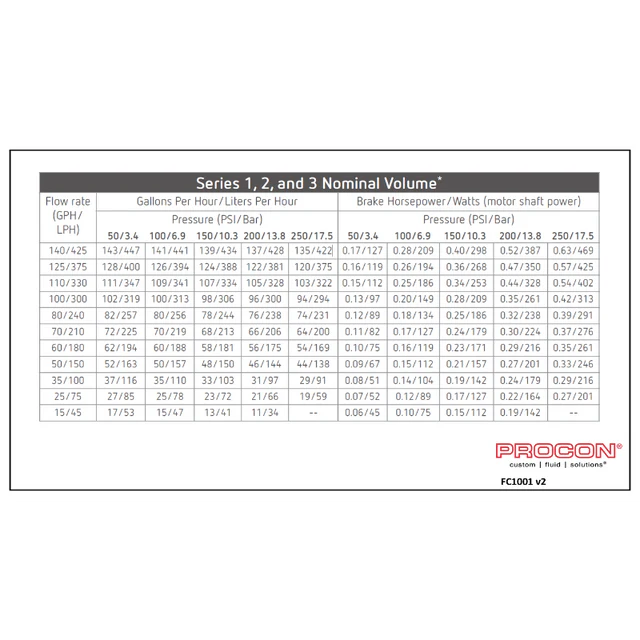

Product Performance Curves:
Specifications:
PMB-2507
Technical Information:
Material | Brass |
Port Hole | NPT 1/2" |
Mounting Type | Bolt-On |
Drive Configuration | Single Flat |
Flowrate (GPH) | 240 GPH |
Flowrate (LPH) | 725 LPH |
Elastomer | EPDM/Nitrile |
Seal Type | Non-Balanced Ceramic/Carbon |
Rotation | Clockwise |
Internal Component Material | Carbon |
Valve Type | Solid- Ultem |
Valve Configuration | Standard-Non External adjust |
Product Weight | 3.52 lb (1.6 Kg) |
Operating Range:
Specification | Description |
Maximum Mechanical Power Requirement | 0.86 hp (641 W) |
Maximum Operating Pressure | 150 psi |
Relief Valve Set Pressure Range | 151 to 250 psi (10 to 17.5 BAR) |
Max Static Pressure PSI | 100 psi |
Min Operation Fluid Temperature | -4°F |
Max Operation Fluid Temperature | 160°F |
Max Fluid Viscocity | 100 cP |
Max Sound Level | 60 dB(a) |
Max Discharge Pressure | 250 psi |
Min Speed | 1000 RPM |
Max Speed | 2400 RPM |
Dry Suction Lift | 3.3 ft |
Wet Suction Lift | 6.6 ft |
Fluid Acidity | 6 pH |
Maximum Total Dissolved Solids (TDS) | 5000 ppm |
Product Drawing:
Product Performance Curves:
